Waveguide crosstalk (EME)#
In this notebook, we reproduce Fig. 4.19 of , which calculates the maximum cross talk between strips waveguides of different dimensions.
First, we setup a coupled waveguide system:
import matplotlib as mpl
import matplotlib.pyplot as plt
import numpy as np
import shapely
from meshwell.model import Model
from meshwell.polysurface import PolySurface
from skfem import Basis, ElementTriP0, Mesh
from skfem.io.meshio import from_meshio
from femwell.maxwell.waveguide import compute_modes
from femwell.visualization import plot_domains

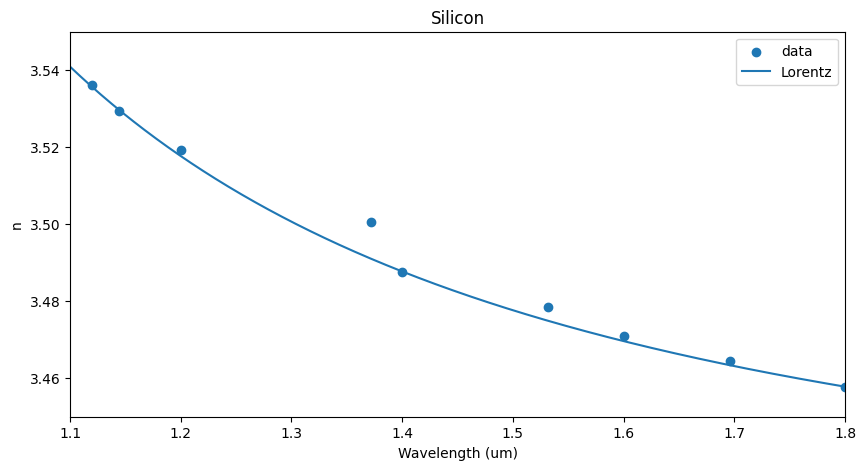

First, we precisely extract the refractive index of silicon at 1.55 um using a Lorentz fit:
si_data = np.loadtxt("../reference_data/Palik/palik_silicon.txt", skiprows=1)
c = 299792458 # m/s
def ncore(wl):
# Assume wl provided in um
wl_m = wl * 1e-6
eps = 7.9874
eps_lorentz = 3.6880
w0 = 3.9328e15
return np.sqrt(eps + eps_lorentz * w0**2 / (w0**2 - (2 * np.pi * c / wl_m) ** 2))
wls = np.linspace(1.100, 1.800, 1000)
plt.scatter(si_data[:, 0] * 1e-3, si_data[:, 1], label="data")
plt.plot(wls, ncore(wls), label="Lorentz")
plt.xlim([1.100, 1.800])
plt.ylim([3.45, 3.55])
plt.xlabel("Wavelength (um)")
plt.ylabel("n")
plt.legend()
plt.title("Silicon")
Text(0.5, 1.0, 'Silicon')
def coupled_waveguides_crosstalk(
width_A: float = 0.5,
width_B: float = 0.5,
gap: float = 1.0,
thickness: float = 0.22,
core_index: float = ncore(1.55),
clad_index: float = 1.444,
wavelength: float = 1.55,
simulation_padding: float = 2.0,
plot_geometry: bool = False,
plot_modes: bool = False,
):
# Define mesh
waveguide_A_polygon = shapely.geometry.box(-width_A - gap / 2, 0, -gap / 2, thickness)
waveguide_B_polygon = shapely.geometry.box(gap / 2, 0, width_B + gap / 2, thickness)
cladding_polygon = shapely.geometry.box(
-width_A / 2 - gap / 2 - simulation_padding,
-simulation_padding,
width_B / 2 + gap / 2 + simulation_padding,
simulation_padding + thickness,
)
model = Model()
waveguide_A = PolySurface(
polygons=waveguide_A_polygon,
model=model,
physical_name="waveguide_A",
resolution={"resolution": 0.05, "DistMax": 1.0, "SizeMax": 0.2},
mesh_order=1,
)
waveguide_B = PolySurface(
polygons=waveguide_B_polygon,
model=model,
physical_name="waveguide_B",
resolution={"resolution": 0.05, "DistMax": 1.0, "SizeMax": 0.2},
mesh_order=1,
)
cladding = PolySurface(
polygons=cladding_polygon,
model=model,
physical_name="cladding",
mesh_order=2,
)
mesh = from_meshio(
model.mesh(
entities_list=[waveguide_A, waveguide_B, cladding],
filename="mesh.msh",
default_characteristic_length=0.2,
)
)
basis0 = Basis(mesh, ElementTriP0(), intorder=4)
# Solve for mode A in isolation
epsilon = basis0.zeros(dtype=complex)
for subdomain, n in {
"waveguide_A": core_index,
"waveguide_B": clad_index,
"cladding": clad_index,
}.items():
epsilon[basis0.get_dofs(elements=subdomain)] = n**2
if plot_geometry:
mesh.draw().show()
plt.show()
plot_domains(mesh)
plt.show()
fig, axs = plt.subplots(1, 2)
for ax in axs:
ax.set_aspect(1)
axs[0].set_title(r"$\Re\epsilon$, waveguide A")
basis0.plot(epsilon.real, colorbar=True, ax=axs[0])
axs[1].set_title(r"$\Im\epsilon$, waveguide A")
basis0.plot(epsilon.imag, shading="gouraud", colorbar=True, ax=axs[1])
plt.show()
# Get modes
modes_A = compute_modes(
basis0,
epsilon,
wavelength=wavelength,
num_modes=1,
order=2,
radius=np.inf,
)
beta_A = np.real(modes_A[0].n_eff) * 2 * np.pi / wavelength
if plot_modes:
modes_A[0].plot(modes_A[0].E.real, colorbar=True, direction="x")
plt.show()
# Solve for mode B in isolation
epsilon = basis0.zeros(dtype=complex)
for subdomain, n in {
"waveguide_A": clad_index,
"waveguide_B": core_index,
"cladding": clad_index,
}.items():
epsilon[basis0.get_dofs(elements=subdomain)] = n**2
if plot_geometry:
mesh.draw().show()
plt.show()
plot_domains(mesh)
plt.show()
fig, axs = plt.subplots(1, 2)
for ax in axs:
ax.set_aspect(1)
axs[0].set_title(r"$\Re\epsilon$, waveguide B")
basis0.plot(epsilon.real, colorbar=True, ax=axs[0])
axs[1].set_title(r"$\Im\epsilon$, waveguide B")
basis0.plot(epsilon.imag, shading="gouraud", colorbar=True, ax=axs[1])
plt.show()
# We do not need B in this formulation
# modes_B = compute_modes(
# basis0,
# epsilon,
# wavelength=wavelength,
# num_modes=1,
# order=2,
# radius=np.inf,
# )
# beta_B = np.real(modes_B[0].n_eff) * 2 * np.pi / wavelength
# if plot_modes:
# modes_B[0].plot(modes_B[0].E.real, colorbar=True, direction="x")
# plt.show()
# Solve for hybrid modes
epsilon = basis0.zeros(dtype=complex)
for subdomain, n in {
"waveguide_A": core_index,
"waveguide_B": core_index,
"cladding": clad_index,
}.items():
epsilon[basis0.get_dofs(elements=subdomain)] = n**2
if plot_geometry:
mesh.draw().show()
plt.show()
plot_domains(mesh)
plt.show()
fig, axs = plt.subplots(1, 2)
for ax in axs:
ax.set_aspect(1)
axs[0].set_title(r"$\Re\epsilon$, coupler")
basis0.plot(epsilon.real, colorbar=True, ax=axs[0])
axs[1].set_title(r"$\Im\epsilon$, coupler")
basis0.plot(epsilon.imag, shading="gouraud", colorbar=True, ax=axs[1])
plt.show()
modes_full = compute_modes(
basis0,
epsilon,
wavelength=wavelength,
num_modes=2,
order=2,
radius=np.inf,
)
beta_full_1 = np.real(modes_full[0].n_eff) * 2 * np.pi / wavelength
beta_full_2 = np.real(modes_full[1].n_eff) * 2 * np.pi / wavelength
if plot_modes:
modes_full[0].plot(modes_full[0].E.real, colorbar=True, direction="x")
plt.show()
modes_full[1].plot(modes_full[1].E.real, colorbar=True, direction="x")
plt.show()
# Overlap integrals
A_into_1 = np.abs(modes_A[0].calculate_overlap(modes_full[0])) ** 2
A_into_2 = np.abs(modes_A[0].calculate_overlap(modes_full[1])) ** 2
coeff1 = np.sqrt(A_into_1) / np.sqrt(A_into_1 + A_into_2) # normalize
coeff2 = np.sqrt(A_into_2) / np.sqrt(A_into_1 + A_into_2) # normalize
# Worst case EME crosstalk calculation
# Cross talk as defined in the book: 0 dB is full cross-talk
# return 10*np.log10(1 - (np.abs(coeff1) ** 4 + np.abs(coeff2) ** 4 - 2 * np.abs(coeff1)**2 * np.abs(coeff2)**2))
return coeff1, coeff2, beta_full_1, beta_full_2
Some functions to manipulate the returned overlap coefficients and betas:
def PA(coeff1, coeff2, beta_full_1, beta_full_2, L, wavelength=1.55):
"""Power in waveguide A vs propagation length"""
return (
np.abs(coeff1) ** 4
+ np.abs(coeff2) ** 4
+ 2 * np.abs(coeff1) ** 2 * np.abs(coeff2) ** 2 * np.cos((beta_full_2 - beta_full_1) * L)
)
def PB(coeff1, coeff2, beta_full_1, beta_full_2, L):
"""Power in waveguide B vs propagation length"""
return 1 - PA(coeff1, coeff2, beta_full_1, beta_full_2, L)
def dB(lin: float = 0.0):
"""Conversion to dB"""
return 10 * np.log10(lin)
Run the simulation for two gaps and two sets of widths:
coeff1s = {}
coeff2s = {}
beta_full_1s = {}
beta_full_2s = {}
width_A = 0.5
widths_B = [0.4, 0.5]
gaps = [0.2, 0.4]
for width_B in widths_B:
for gap in gaps:
coeff1, coeff2, beta_full_1, beta_full_2 = coupled_waveguides_crosstalk(
width_A=width_A,
width_B=width_B,
gap=gap,
thickness=0.22,
core_index=3.48,
clad_index=1.44,
wavelength=1.55,
simulation_padding=3.0,
plot_geometry=True,
plot_modes=True,
)
coeff1s[(width_B, gap)] = coeff1
coeff2s[(width_B, gap)] = coeff2
beta_full_1s[(width_B, gap)] = beta_full_1
beta_full_2s[(width_B, gap)] = beta_full_2
Show code cell output
Info : [ 0%] Difference
Info : [ 10%] Difference - Performing intersection of shapes
Info : [ 80%] Difference - Building splits of containers
Info : [ 0%] Fragments
Info : [ 10%] Fragments - Performing intersection of shapes
Info : [ 80%] Fragments - Building splits of containers
Info : [ 0%] Difference
Info : [ 10%] Difference
Info : [ 20%] Difference
Info : [ 30%] Difference
Info : [ 40%] Difference
Info : [ 50%] Difference
Info : [ 60%] Difference
Info : [ 70%] Difference
Info : [ 80%] Difference - Making faces
Info : [ 90%] Difference - Adding holes
Info : [ 0%] Fragments
Info : [ 10%] Fragments
Info : [ 40%] Fragments
Info : [ 70%] Fragments
Info : [ 80%] Fragments - Splitting faces
Info : Meshing 1D...
Info : [ 0%] Meshing curve 3 (Line)
Info : [ 0%] Meshing curve 1 (Line)
Info : [ 0%] Meshing curve 4 (Line)
Info : [ 0%] Meshing curve 5 (Line)
Info : [ 20%] Meshing curve 6 (Line)
Info : [ 20%] Meshing curve 2 (Line)
Info : [ 30%] Meshing curve 7 (Line)
Info : [ 30%] Meshing curve 8 (Line)
Info : [ 50%] Meshing curve 9 (Line)
Info : [ 50%] Meshing curve 10 (Line)
Info : [ 50%] Meshing curve 11 (Line)
Info : [ 50%] Meshing curve 12 (Line)
Info : Done meshing 1D (Wall 0.00247822s, CPU 0.00554s)
Info : Meshing 2D...
Info : [ 0%] Meshing surface 3 (Plane, Frontal-Delaunay)
Info : [ 0%] Meshing surface 1 (Plane, Frontal-Delaunay)
Info : [ 0%] Meshing surface 2 (Plane, Frontal-Delaunay)
Info : Done meshing 2D (Wall 0.0707484s, CPU 0.095994s)
Info : 2983 nodes 6032 elements
Info : Writing 'mesh.msh'...
Info : Done writing 'mesh.msh'
Info : Writing '/tmp/tmp5ilw3tn2/mesh.msh'...
Info : Done writing '/tmp/tmp5ilw3tn2/mesh.msh'
Info : [ 0%] Difference
Info : [ 10%] Difference - Performing intersection of shapes
Info : [ 80%] Difference - Building splits of containers
Info : [ 0%] Fragments
Info : [ 10%] Fragments - Performing intersection of shapes
Info : [ 80%] Fragments - Building splits of containers
Info : [ 0%] Difference
Info : [ 10%] Difference
Info : [ 20%] Difference
Info : [ 30%] Difference
Info : [ 40%] Difference
Info : [ 50%] Difference
Info : [ 60%] Difference
Info : [ 70%] Difference
Info : [ 80%] Difference - Making faces
Info : [ 90%] Difference - Adding holes
Info : [ 0%] Fragments
Info : [ 10%] Fragments
Info : [ 40%] Fragments
Info : [ 70%] Fragments
Info : [ 80%] Fragments - Splitting faces
Info : Meshing 1D...
Info : [ 0%] Meshing curve 1 (Line)
Info : [ 0%] Meshing curve 3 (Line)
Info : [ 0%] Meshing curve 2 (Line)
Info : [ 0%] Meshing curve 4 (Line)
Info : [ 10%] Meshing curve 5 (Line)
Info : [ 10%] Meshing curve 6 (Line)
Info : [ 10%] Meshing curve 7 (Line)
Info : [ 40%] Meshing curve 8 (Line)
Info : [ 40%] Meshing curve 9 (Line)
Info : [ 40%] Meshing curve 10 (Line)
Info : [ 60%] Meshing curve 11 (Line)
Info : [ 60%] Meshing curve 12 (Line)
Info : Done meshing 1D (Wall 0.00269032s, CPU 0.006815s)
Info : Meshing 2D...
Info : [ 0%] Meshing surface 2 (Plane, Frontal-Delaunay)
Info : [ 0%] Meshing surface 1 (Plane, Frontal-Delaunay)
Info : [ 0%] Meshing surface 3 (Plane, Frontal-Delaunay)
Info : Done meshing 2D (Wall 0.0748793s, CPU 0.103867s)
Info : 3175 nodes 6416 elements
Info : Writing 'mesh.msh'...
Info : Done writing 'mesh.msh'
Info : Writing '/tmp/tmpw2fwmma_/mesh.msh'...
Info : Done writing '/tmp/tmpw2fwmma_/mesh.msh'
Warning : Logger already started - ignoring
Info : [ 0%] Difference
Info : [ 10%] Difference - Performing intersection of shapes
Info : [ 80%] Difference - Building splits of containers
Info : [ 0%] Fragments
Info : [ 10%] Fragments - Performing intersection of shapes
Info : [ 80%] Fragments - Building splits of containers
Info : [ 0%] Difference
Info : [ 10%] Difference
Info : [ 20%] Difference
Info : [ 30%] Difference
Info : [ 40%] Difference
Info : [ 50%] Difference
Info : [ 60%] Difference
Info : [ 70%] Difference
Info : [ 80%] Difference - Making faces
Info : [ 90%] Difference - Adding holes
Info : [ 0%] Fragments
Info : [ 10%] Fragments
Info : [ 40%] Fragments
Info : [ 70%] Fragments
Info : [ 80%] Fragments - Splitting faces
Info : Meshing 1D...
Info : [ 0%] Meshing curve 1 (Line)
Info : [ 0%] Meshing curve 2 (Line)
Info : [ 0%] Meshing curve 3 (Line)
Info : [ 0%] Meshing curve 4 (Line)
Info : [ 0%] Meshing curve 5 (Line)
Info : [ 20%] Meshing curve 6 (Line)
Info : [ 20%] Meshing curve 7 (Line)
Info : [ 20%] Meshing curve 8 (Line)
Info : [ 20%] Meshing curve 9 (Line)
Info : [ 20%] Meshing curve 10 (Line)
Info : [ 60%] Meshing curve 11 (Line)
Info : [ 60%] Meshing curve 12 (Line)
Info : Done meshing 1D (Wall 0.000794718s, CPU 0.001019s)
Info : Meshing 2D...
Info : [ 0%] Meshing surface 2 (Plane, Frontal-Delaunay)
Info : [ 0%] Meshing surface 1 (Plane, Frontal-Delaunay)
Info : [ 0%] Meshing surface 3 (Plane, Frontal-Delaunay)
Info : Done meshing 2D (Wall 0.0682911s, CPU 0.100008s)
Info : 3006 nodes 6082 elements
Info : Writing 'mesh.msh'...
Info : Done writing 'mesh.msh'
Info : Writing '/tmp/tmpes3ek3c7/mesh.msh'...
Info : Done writing '/tmp/tmpes3ek3c7/mesh.msh'
Warning : Logger already started - ignoring
Info : [ 0%] Difference
Info : [ 10%] Difference - Performing intersection of shapes
Info : [ 80%] Difference - Building splits of containers
Info : [ 0%] Fragments
Info : [ 10%] Fragments - Performing intersection of shapes
Info : [ 80%] Fragments - Building splits of containers
Info : [ 0%] Difference
Info : [ 10%] Difference
Info : [ 20%] Difference
Info : [ 30%] Difference
Info : [ 40%] Difference
Info : [ 50%] Difference
Info : [ 60%] Difference
Info : [ 70%] Difference
Info : [ 80%] Difference - Making faces
Info : [ 90%] Difference - Adding holes
Info : [ 0%] Fragments
Info : [ 10%] Fragments
Info : [ 40%] Fragments
Info : [ 70%] Fragments
Info : [ 80%] Fragments - Splitting faces
Info : Meshing 1D...
Info : [ 0%] Meshing curve 2 (Line)
Info : [ 0%] Meshing curve 3 (Line)
Info : [ 0%] Meshing curve 4 (Line)
Info : [ 10%] Meshing curve 6 (Line)
Info : [ 0%] Meshing curve 1 (Line)
Info : [ 10%] Meshing curve 7 (Line)
Info : [ 40%] Meshing curve 8 (Line)
Info : [ 40%] Meshing curve 9 (Line)
Info : [ 40%] Meshing curve 10 (Line)
Info : [ 60%] Meshing curve 11 (Line)
Info : [ 60%] Meshing curve 12 (Line)
Info : [ 10%] Meshing curve 5 (Line)
Info : Done meshing 1D (Wall 0.00379967s, CPU 0.010165s)
Info : Meshing 2D...
Info : [ 0%] Meshing surface 1 (Plane, Frontal-Delaunay)
Info : [ 0%] Meshing surface 3 (Plane, Frontal-Delaunay)
Info : [ 0%] Meshing surface 2 (Plane, Frontal-Delaunay)
Info : Done meshing 2D (Wall 0.0790151s, CPU 0.105941s)
Info : 3282 nodes 6634 elements
Info : Writing 'mesh.msh'...
Info : Done writing 'mesh.msh'
Info : Writing '/tmp/tmpmijvv80b/mesh.msh'...
Info : Done writing '/tmp/tmpmijvv80b/mesh.msh'
Warning : Logger already started - ignoring
Using the coupling coefficients and propagation constants, we plot the power in each waveguide as a function of propagation distance, and compare to reference data (light shade):
Chrostowski_4p19a = np.genfromtxt(
"../reference_data/Chrostowski/Chrostowski_4p19a.csv", skip_header=2, delimiter=","
)
Chrostowski_4p19b = np.genfromtxt(
"../reference_data/Chrostowski/Chrostowski_4p19b.csv", skip_header=2, delimiter=","
)
L = np.linspace(0, 70, 10000) # um
cmap = mpl.colormaps["tab10"]
colors = cmap(np.linspace(0, 1, 11))
widths_B_list = [widths_B[0], widths_B[1], widths_B[1], widths_B[0]]
gaps_list = [gaps[0], gaps[0], gaps[0], gaps[0]]
colors_index = [3, 0, 1, 2]
functions_list = [PA, PA, PB, PB]
for width, gap, function, color_ind in zip(widths_B_list, gaps_list, functions_list, colors_index):
plt.plot(
L,
dB(
function(
coeff1s[(width, gap)],
coeff2s[(width, gap)],
beta_full_1s[(width, gap)],
beta_full_2s[(width, gap)],
L,
)
),
color=colors[color_ind],
label=f"{width_A*1E3:1.0f} nm, {width*1E3:1.0f} nm, {gap*1E3:1.0f} nm, {function.__name__}",
)
plt.plot(Chrostowski_4p19a[:, 2], Chrostowski_4p19a[:, 3], color=colors[0], alpha=0.3, linewidth=5)
plt.plot(Chrostowski_4p19a[:, 4], Chrostowski_4p19a[:, 5], color=colors[1], alpha=0.3, linewidth=5)
plt.plot(Chrostowski_4p19a[:, 0], Chrostowski_4p19a[:, 1], color=colors[2], alpha=0.3, linewidth=5)
plt.legend(title="Width A, Width B, gap, guide", bbox_to_anchor=[1.0, 1.0])
plt.title("Power in waveguide A (PA, initially 100%) or waveguide B (PB, initially 0%)")
plt.ylim([-60, 5])
plt.ylabel("Normalized power in waveguide / dB")
plt.xlabel("Length / um")
/tmp/ipykernel_7561/421449922.py:17: RuntimeWarning: invalid value encountered in log10
return 10 * np.log10(lin)
Text(0.5, 0, 'Length / um')
L = np.linspace(0, 70, 10000) # um
cmap = mpl.colormaps["tab10"]
colors = cmap(np.linspace(0, 1, 11))
widths_B_list = [widths_B[0], widths_B[1], widths_B[1], widths_B[0]]
gaps_list = [gaps[1], gaps[1], gaps[1], gaps[1]]
colors_index = [3, 0, 1, 2]
functions_list = [PA, PA, PB, PB]
for width, gap, function, color_ind in zip(widths_B_list, gaps_list, functions_list, colors_index):
plt.plot(
L,
dB(
function(
coeff1s[(width, gap)],
coeff2s[(width, gap)],
beta_full_1s[(width, gap)],
beta_full_2s[(width, gap)],
L,
)
),
color=colors[color_ind],
label=f"{width_A*1E3:1.0f} nm, {width*1E3:1.0f} nm, {gap*1E3:1.0f} nm, {function.__name__}",
)
plt.plot(Chrostowski_4p19b[:, 2], Chrostowski_4p19b[:, 3], color=colors[0], alpha=0.3, linewidth=5)
plt.plot(Chrostowski_4p19b[:, 4], Chrostowski_4p19b[:, 5], color=colors[1], alpha=0.3, linewidth=5)
plt.plot(Chrostowski_4p19b[:, 0], Chrostowski_4p19b[:, 1], color=colors[2], alpha=0.3, linewidth=5)
plt.legend(title="Width A, Width B, gap, guide", bbox_to_anchor=[1.0, 1.0])
plt.title("Power in waveguide A (PA, initially 100%) or waveguide B (PB, initially 0%)")
plt.ylim([-60, 5])
plt.ylabel("Normalized power in waveguide / dB")
plt.xlabel("Length / um")
/tmp/ipykernel_7561/421449922.py:17: RuntimeWarning: divide by zero encountered in log10
return 10 * np.log10(lin)
Text(0.5, 0, 'Length / um')
